SENSOR

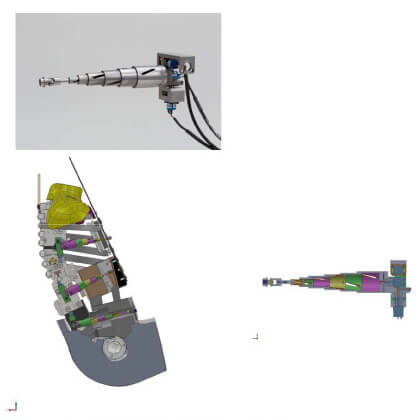

What is SPIRAL Track®?
SPIRAL Track is mechanical measuring instrument equipped less than 1% of nonlinearity accuracy with high performance of tracking ability due to backlash "zero" specification design, consisting of 4 to 6 cylinders sleeve with spiral grooves.
All sleeves expand and contract measuring the displacement of thorax and abdomen of dummy by angle sensors. In the base of sleeves, 3 sets of rotary angle sensors (x-axis, y-axis, z-axis) are assembled and detect even oblique displacement as well. It can also be integrated into loosely structured spaces.
All sleeves expand and contract measuring the displacement of thorax and abdomen of dummy by angle sensors. In the base of sleeves, 3 sets of rotary angle sensors (x-axis, y-axis, z-axis) are assembled and detect even oblique displacement as well. It can also be integrated into loosely structured spaces.
| Feature | Mechanical construction makes high reliability as measuring tool. Nonlinearity is less than 1% performance makes high accuracy of sensor. Backlash "zero" makes high tracking ability. Expansion and contraction structure makes wide ability of usage. |
|---|---|
| Field of application | THOR 50, WorldSID 50, Q dummy series, RS-Dummy, MATD dummy |
| International patented products | JAPAN, US, Europe, China, India, Korea, Taiwan |
Hybrid-III 50th, 5th, 95th Sensor

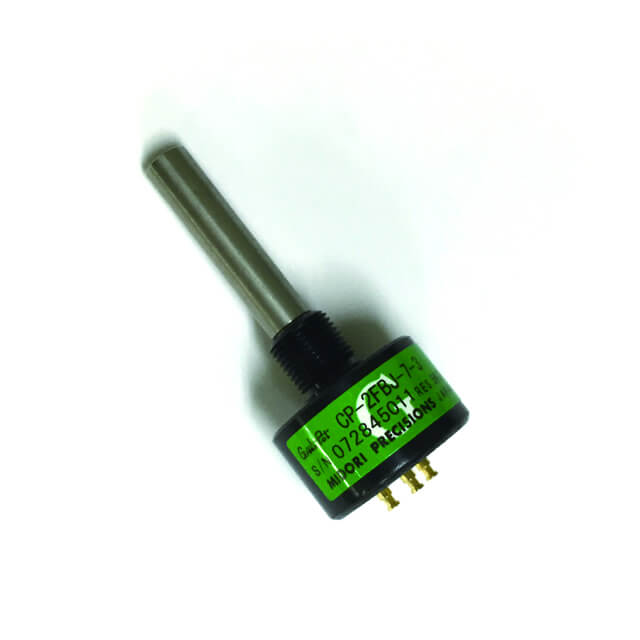

Chest Rotary Potentiometer

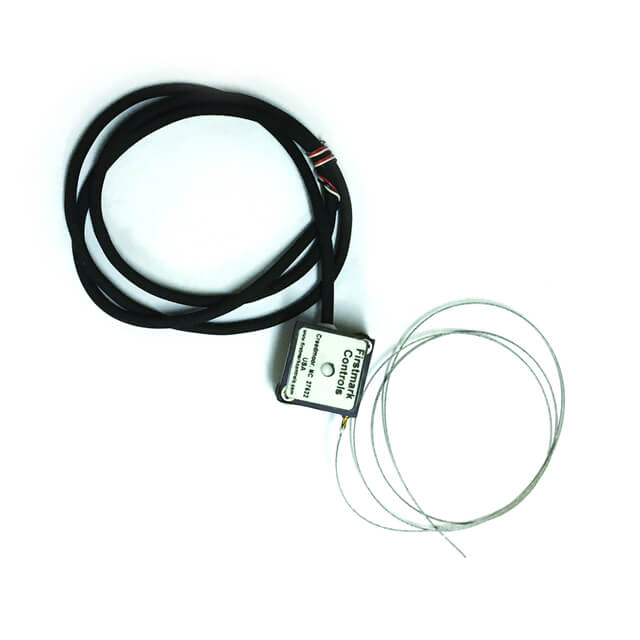

Knee Potentiometer,
String
